U Shape Straw Packing Machine

Overview

Basic Info.

Model NO.	LG-53
Automatic Grade	Automatic
Inclusion Degree	Fully Wrapped Winding Machine
Structure	Pallet Wrapping Machine
Weight of Machine	1100kg
Guarantee	One Year
Straw Type	PP / PLA / Paper
Inner Diameter of Straw	3.8mm
Sealing Type	4 Side Sealing
Speed	500-700PCS/Min
Item	U Shape Flexible Drinking Straw Packing Machine
Transport Package	Wooden Package
Trademark	SUNRISE MACHINERY
Origin	Zhejiang, China
HS Code	8422400090
Production Capacity	10sets/Month

Product Description

U shape flexible drinking straw packing machine

1. Description:
This machine can bend flexible straws to U-shape and automatically fill, pack it. The sealing moulds are made of casted aluminum, easy to heat and steady the temperature. The machine is with correcting table to repair the straw packages, so it can produce the high quality U shape straw rolls.

2. Characteristics:
Straw filling, bending, packing automatic finished at once.
Automatic counting and batch alarm.
The packing speed can be adjusted.
With redundant margin cutting device
The inverter brand is DELTATechnic Data

Power of driving motor	2.2kw (control by Delta inverter)
Power of fan	0.25kw
Power of vacuum pump	0.75kw
Capacity	500-700pcs/min
Packing type	4 sides sealing
Raw material	BOPP film 1)Width of film:95-180mm 2)Thickness of film:0.018~0.022mm
Specification of straw	1)Inner dia.3.8mm / 4.8mm 2)Thickness:0.17~0.25mm 3)Length of U shape moulds:90mm/105mm/128mm
Distance of each straw	22mm (Pitch distance)
Dimension of machine	3000×1800×1600mm
Weight of machine	1100kgs

Detailed Photos

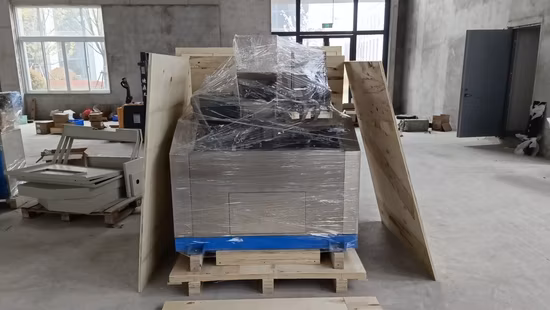

U Shape Straw Packing Machine
